Details

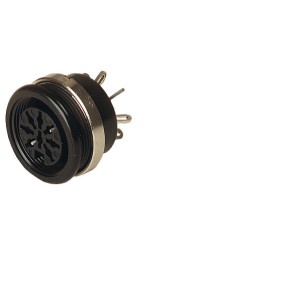

MAB 8100 SN BLACK
Long Description
panel-mounted socket with locking screw; solder joint; not shielded
Additional Information
| SKU | 931749-500 |
|---|---|
| Manufacturer | HIRSCHMANN |
| Added Ground Wire | False |
| Arbitrary Self-assembling | True |
| Audio/video (circular Connectors) | True |
| Bus Connectors (circular Connectors) | False |
| Colour | Black |
| Conductor Size | <= 0.34 Mm2 |
| Contact Bearer Material | Pa 66/ul Standard 94v-2 |
| Contact Material (socket) | Brass |
| Contact Surface Material | Tin Plated |
| Control (rectangular Connectors) | False |
| Din 43650 / En 175301-803 / Iso 4400 | False |
| Din 43651 | False |
| Din Vde 0627 / Iec 61984 | False |
| Function Indicator | False |
| Geometry Of Construction Type | Straight |
| Housing Material | Pe |
| Iec 61076-2-101 (ed. 1) | False |
| Industrial Standard | False |
| Lf Output "phone" | En 60 130-09 |
| Number Of Contacts | 8 |
| Pnp/normally Open | False |
| Pole Arrangement Din | Din 45 326 |
| Protection Class (iec 60529) | Ip 30 |
| Protective Wiring | False |
| Rated Current | 4 A |
| Rated Voltage | Ac/dc 34 V |
| Sensors (circular Connectors) | False |
| Series | Mas-/mak-series |
| Shielding | False |
| Supply (circular Connectors) | False |
| Supply (rectangular Connectors) | False |
| Temperature Range | -20 °c To +60 °c |
| Type | Appliance Socket |
| Type Of Contact | Female |
| Type Of Termination | Solder |
| Type Of Voltage | Ac/dc |
| Type Rectifier | False |
| Valve (rectanglar Connectors) | False |
| Wired (posibillity To Fit Electronic Insert) | False |
