Details

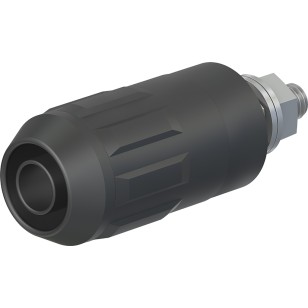

SAFETY JACK XUB-G BLK.
Long Description
Insulated, rigid, Ø 4 mm, accepting spring-loaded Ø 4 mm plugs with rigid insulating sleeve. Machined brass. The socket is surface-mounted, assembled flush, or pressed into pre-drilled panels of plastic, metal, etc.Connection: Threaded bolt M4.Optional: Protective cap SD-XUB to cover up unplugged, unused sockets (Protection degree IP67).
Additional Information
| Weight | 1.0000 0 |
|---|---|
| SKU | 66.9684-21 |
| Manufacturer | STAUBLI |
| Type | Xub-g |
| Model | 4mm Universal Socket Black |
| Colour | 21 |
| Diameter Of Plug System | 4 Mm |
| Test Accessory Acc. To | Iec En 61010-031 |
| Assembly Instruction | Ma 507 |
| Ur Usa | X |
| Ur Kanada | X |
