Details

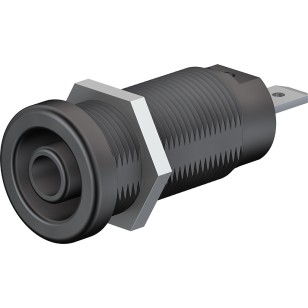

SOCKET PANEL MT. XEF-1 R
Long Description
Insulated, rigid, Ø 4 mm, accepting spring-loaded Ø 4 mm plugs with rigid insulating sleeve. Machined brass. The sockets are screwed into pre-drilled panels of plastic, metal, etc.Connection: Flat connecting tab 4.8 mm × 0.8 mm.
Additional Information
| Weight | 1.0000 0 |
|---|---|
| SKU | 66.9665-21 |
| Manufacturer | STAUBLI |
| Type | Xef-1r |
| Model | 4mm Panel-mount Socket Black |
| Colour | 21 |
| Diameter Of Plug System | 4 Mm |
| Test Accessory Acc. To | Iec En 61010-031 |
| Assembly Instruction | Ma 506 |
| Ur Usa | X |
| Ur Kanada | X |
