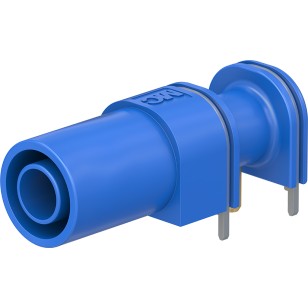

4MM ANGLED SOCKETS
Long Description
For mounting on printed circuit boards, touch-protected according to IEC/EN 61010-1. The socket is directly soldered onto printed circuit boards. The right-angled configuration minimizes the force transmitted to the printed circuit board through theplugged-in test lead. Right-angled Ø 4 mm rigid socket accepting spring-loaded Ø 4 mm plugs with rigid insulating sleeve. Machined brass.Connection: Ø 2 mm round pin and contacts for mounting on printed circuit boards.
Additional Information
| Weight | 1.0000 0 |
|---|---|
| SKU | 66.9040-23 |
| Manufacturer | STAUBLI |
| Type | Xelw-4 |
| Model | 4mm Angled Socket Blue |
| Colour | 23 |
| Diameter Of Plug System | 4 Mm |
| Test Accessory Acc. To | Iec En 61010-031 |
| Assembly Instruction | Ma 561 |
| Ur Usa | X |
| Ur Kanada | X |
