Details
SEB4-F6 3N
Long Description

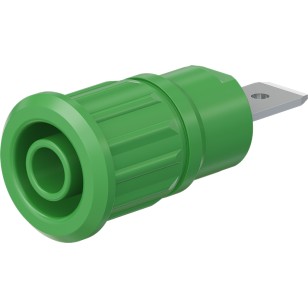

Insulated, rigid, Ø 4 mm, accepting spring-loaded Ø 4 mm plugs with rigid insulating sleeve. Machined brass. The socket is pressed into pre-drilled panels of plastic, metal, etc.Connection: Flat connecting tab 6.3 mm × 0.8 mm.
Additional Information
| Weight | 1.0000 0 |
|---|---|
| SKU | 49.7073-25 |
| Manufacturer | STAUBLI |
| Type | Seb4-f6,3n |
| Model | 4mm Safety Socket Green |
| Colour | 25 |
| Diameter Of Plug System | 4 Mm |
| Test Accessory Acc. To | Iec En 61010-031 |
| Assembly Instruction | Ma 104 |
| Ur Usa | X |
| Ur Kanada | X |
