Details
SEB4-F/6 3
Long Description

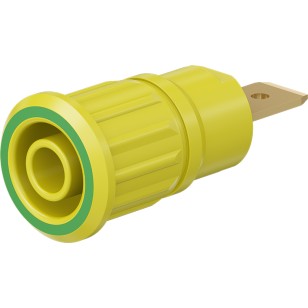

Insulated, rigid, Ø 4 mm, accepting spring-loaded Ø 4 mm plugs with rigid insulating sleeve. Machined brass. The socket is pressed into pre-drilled panels of plastic, metal, etc.Connection: Flat connecting tab 6,3 mm × 0,8 mm.
Additional Information
| Weight | 1.0000 0 |
|---|---|
| SKU | 23.3150-20 |
| Manufacturer | STAUBLI |
| Type | Seb4-f/6,3 |
| Model | 4mm Safety Socket Green-yellow |
| Colour | 20 |
| Diameter Of Plug System | 4 Mm |
| Test Accessory Acc. To | Iec En 61010-031 |
| Assembly Instruction | Ma 104 |
| Ur Usa | X |
| Ur Kanada | X |
