Details
SLB4-F/A
Long Description

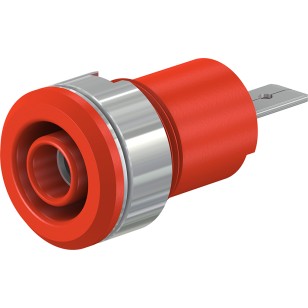

Insulated Ø 4 mm rigid sockets accepting spring-loaded Ø 4 mm plugs with rigid insulating sleeve. Brass sheet, nickel-plated. The socket is screwed into predrilled panels of plastic, metal etc.Flat connecting tab 4.8 mm × 0.8 mm, can be bent to 90°, once only.
Additional Information
| Weight | 1.0000 0 |
|---|---|
| SKU | 23.3070-22 |
| Manufacturer | STAUBLI |
| Type | Slb4-f/a |
| Model | 4mm Safety Socket Red |
| Colour | 22 |
| Diameter Of Plug System | 4 Mm |
| Test Accessory Acc. To | Iec En 61010-031 |
| Assembly Instruction | Ma 152 |
| Ur Usa | X |
| Ur Kanada | X |
