Details

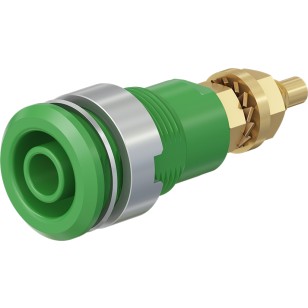

SLB4-G
Long Description
Insulated, rigid, Ø 4 mm, accepting spring-loaded Ø 4 mm plugs with rigid insulating sleeve. Machined brass. The socket is screwed into pre-drilled panels of plastic, metal, etc.Connection: Threaded bolt M4 and soldering hole.
Additional Information
| Weight | 1.0000 0 |
|---|---|
| SKU | 23.3020-25 |
| Manufacturer | STAUBLI |
| Type | Slb4-g |
| Model | 4mm Safety Socket Green |
| Colour | 25 |
| Diameter Of Plug System | 4 Mm |
| Test Accessory Acc. To | Iec En 61010-031 |
| Assembly Instruction | Ma 152 |
| Ur Usa | X |
| Ur Kanada | X |
